Table plasma cutter with rotator is a high - speed, precision and small - sized desktop cutting machine.

Adopt man - machine interface, easy installation, simple operation, low inertia, stable operation.

It is especially suitable for automatic cutting of medium and thin non-ferrous metal, stainless steel and carbon steel.

Can be designed according to customer requirements into smoking table or underwater cutting table, to meet the requirements of environmental protection.

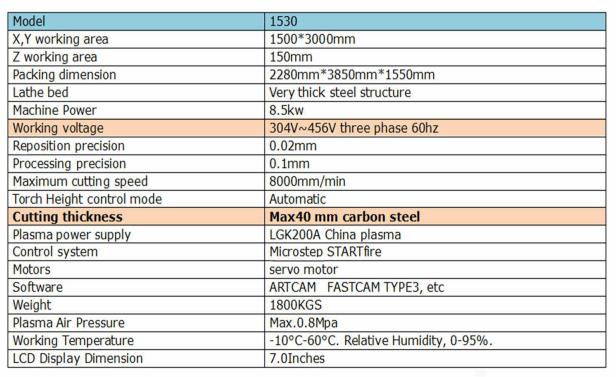

Product related parameters:


台式等离子旋转轴切割机(图1)


System features:

The system features perfect function, high stability, strong anti-interference, suitable for all kinds of plasma power supply


Monitor: 5 inch LCD monitor

External interface: USB

Keys and chassis: fully shielded with steel structure to prevent electromagnetic radiation and static electricity.


System performance:

The normal operating temperature of the system is from -20℃ to +70℃

Control accuracy: ±0.001mm

It adopts 32-bit high-performance CPU and super-large scale programmable device FPGA, and USES real-time multi-task control technology and hardware interpolation technology to achieve high stability during operation.

The whole machine has reasonable technological structure, with all optical coupler and isolation control, and has strong anti-interference ability of plasma.

The storage space of processing files is 2G, which can satisfy the operation and processing of various complex programs and easily handle the operation of large programs.

Plasma arc starting detection, initial positioning, corner signal control functions.

The help feature is easier for beginners to use.

Replace the cutting nozzle, displacement perforation, moving parts function.

The trajectory can go back continuously to the origin.

Delay, preheat, punch function.

You can copy the processing files in the CNC system to the U disk.

Users can use the usb flash drive to download the new app for updates.

There are two ways of track input: using U disk to transmit CAD for nesting processing files and manual coding on site.

USB communication control, U disk directly read files function, convenient field operation.

The original driver and motor from Panasonic of Japan are adopted, with high precision and smooth operation.


Product characteristics


1. Fast cutting speed, high precision and low cost.


2. The machine has firm and reasonable structure, convenient operation and durable use.


3. The incision is thin and neat, which can avoid secondary processing.


4. High configuration CNC system, automatic arc shooting, stable performance.


5. They are completely solved together with other advertising equipment to form an advertising production line


The problem of traditional manual mode.


6. Work with computers to support code and files of Uncannest software (specializing in cutting metal materials)(optional fast CAM software).


7. It can cut metal plate advertising 3d lighting letter and flute profile letter with high cutting accuracy.

(American Electric is optional.)


The samples show
