Desktop Plasma CNC Cutting Machine
1.Desktop plasma CNC cutting machine is a set of computer control, precision mechanical transmission, thermal cutting in one of the high efficiency, high precision, high reliability of cutting equipment.
Good man-machine interface makes the operation more convenient and simple, can quickly and accurately cut out a variety of complex shape plate, especially suitable for medium, thin non-ferrous metal plate, stainless steel and carbon steel plate automatic blanking.
It adopts integrated modular design, fast installation, easy to move.
2. Vertical and horizontal guide adopts domestic or imported linear guide, with high precision and good guidance.The longitudinal guide adopts special rail, the surface is ground and arranged externally, which has high mechanical precision and wear resistance.
Drive rack, gear customized by professional manufacturers.Transversal and longitudinal transmissions adopt German NEUGART or Japanese high precision, high torque, low back clearance, maintenance-free planetary gear reducer.
3. Servo drive adopts Panasonic servo drive system with position detection function, high motion precision, wide speed range and short acceleration time.
4. Dust removal table or dust treatment device can be optional to create a good working environment.
5. A variety of plasma power supply can be selected to meet the requirements of different metal material cutting.
Desktop plasma CNC cutting machine technical parameters:
| 型号Model | MCQC-1515 | MCQC-1530 | MCQC-2040 | MCQC-2060 | MCQC-3040 | MCQC-3080 |
| 切割宽度Cutting width(mm) | 1500 | 1500 | 2000 | 2000 | 3000 | 3000 |
| 切割长度Cutting length(mm) | 1500 | 3000 | 4000 | 6000 | 4000 | 8000 |
| 数控系统CNC system | MicroEdgepro,上海交大系统F23001F2500或根据用户需求选配 MicroEdgepro,or famous domestic brands according to custormer's requirements | |||||
| 切割方式Cutting mode | 等离子切割和火焰切割Plasma cutting and flame cutling | |||||
| 驱动系统Driven system | 单边或双边松下伺服驱动系统驱动 Single-sldeordouble-side Panasonic servo driven system | |||||
| 切割速度Cutting speed(mm/min) | 0-6000 | |||||
| 等离子切割厚度Plasma cut thickness(mm) | 参见所选配的等离子切割电源 Decided by plasma power source | |||||
| 切割工作台Cutting worktable | 普通水檀式除尘工作台或吸式除尘工作台(除尘系统另配) Normal tank-water dust proof worktable or breathing dust proof worktable | |||||
The form is for reference only, please consult the staff for more information.
Desktop plasma CNC cutting machine Performance introduction:
1.The beam is designed with light structure. The structure has good rigidity, light dead weight and small motion inertia.
2.Gantry type structure, the Y axis adopts synchronous double motor and double drive, and the X.Y.Z three axis adopts double linear guide rail
3.Automatic processing sequence, but also can be manually adjusted, breakpoint, power off processing, processing process can follow the track forward, back, flexible processing of arc-breaking, power off encountered in the process.
After the system input the graphic and image data, it can conduct typesetting and editing (such as scaling, rotation, alignment, copy, combination, splitting, smoothing and merging, etc.)
4. with other advertising equipment (blister machine, gear cutting machine, engraving machine) matching, the formation of advertising word processing technology, to solve the traditional manual processing.
5.Cuting mouth small, neat, no slag phenomenon.
6.Iron plate, aluminum plate, galvanized plate, white plate, titanium plate and other metal plate.
7.Fast cutting speed and low cost.
8.NUMERICAL control system configuration, automatic arc starting.
9.Support standard G code path files generated by Software such as Wintai, Beihai Haier, ARTCAM, Type3, etc., and read DXF files generated by software such as AUTOCAD through software transformation.

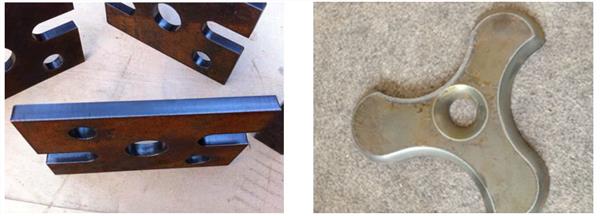

Cutting product display
